Week 06 - Spatial analysis II

library(needs)

needs(sf,
      tidyverse,
      tigris,
      maps,
      janitor,
      RColorBrewer,
      classInt,
      spatialreg,
      spdep,
      spData,
      ggplot2)

This chapter is based on the work of (Moraga 2024; Gentry 2024; Lennert 2024), which provide a comprehensive overview of spatial data analysis in R.

Let’s remember:

“Everything is related to everything else, but near things are more related than distant things.”
— Waldo Tobler, First Law of Geography

→ This principle is at the heart of spatial autocorrelation — the idea that nearby places tend to share similar characteristics.

Spatial neighborhood matrices

Areal (or lattice) data arise when a region is divided into discrete spatial units — such as municipalities, districts, or provinces — and outcomes are aggregated at that level (e.g., disease counts, road accidents, housing prices).

To explore spatial autocorrelation, we define neighborhood structures — i.e., which regions are considered “neighbors.”
These can be based on: - Shared borders (contiguity), - Shared vertices, - Physical distance (e.g., within X kilometers).

The {spdep} package [bivandSpdepSpatialDependence2002] provides tools to build neighborhood and weights structures:

• poly2nb(): create neighbors based on contiguity
• dnearneigh(): define neighbors based on distance thresholds
• nb2listw(): convert neighbor lists to spatial weight matrices

These objects are:

• nb – a list of neighbors (by index)
• listw – a compound object with both:
  • neighbors (nb)
  • weights for each neighbor

These are the foundation for computing Moran’s I, LISA statistics, and running spatial regression models.

# Load and assign CRS
columbus <- st_read(system.file("shapes/columbus.gpkg", package = "spData")[1])

st_crs(columbus) <- 3734

columbus <- st_transform(columbus, 4326)

# Plot

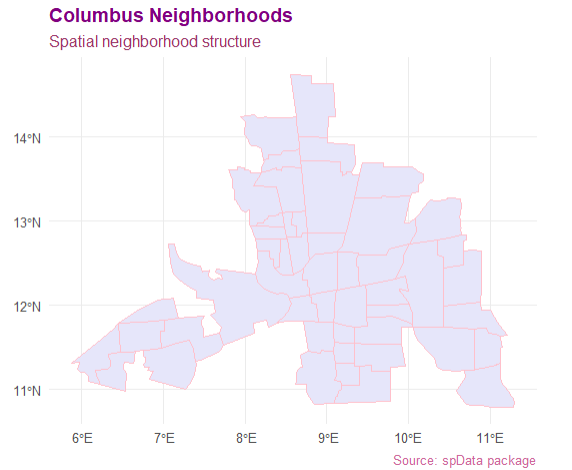

ggplot(columbus) +
  geom_sf(fill = "lavender", color = "pink", size = 0.3) +
  labs(
    title = "Columbus Neighborhoods",
    subtitle = "Spatial neighborhood structure",
    caption = "Source: spData package"
  ) +
  theme_minimal(base_family = "sans") +
  theme(
    plot.title = element_text(face = "bold", color = "#800080"),
    plot.subtitle = element_text(color = "#993366"),
    plot.caption = element_text(color = "#cc6699")
  )

Neighbours based on contiguity

Contiguity-based neighbors are defined as areas that share a common boundary with a given area. There are two main types:

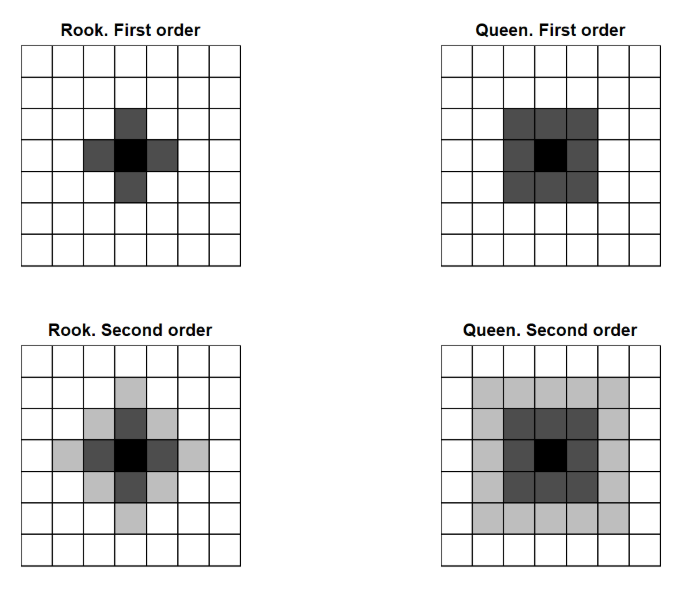

• Queen contiguity: Areas are neighbors if they share any boundary point, including corners.
• Rook contiguity: Areas are neighbors only if they share a common edge, not just a corner.

With the function poly2nb() we can create a neighborhood list based on contiguity. The queen argument specifies whether to use queen or rook contiguity.

if (requireNamespace("sf", quietly = TRUE)) {
columbus <- sf::st_read(system.file("shapes/columbus.gpkg", package="spData")[1])
plot(sf::st_geometry(columbus))
}

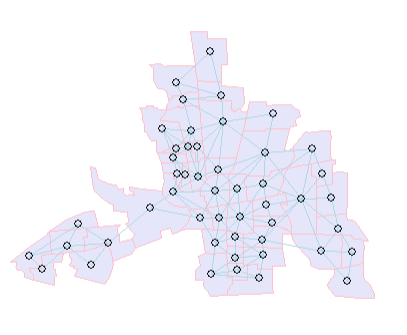

nb <- poly2nb(columbus, queen = TRUE)

head(nb)


plot(st_geometry(columbus), border = "pink", col = "lavender")
plot.nb(nb, st_geometry(columbus), add = TRUE, col = "lightblue")


id <- 20 # area id
columbus$neighbors <- "other"
columbus$neighbors[id] <- "area"
columbus$neighbors[nb[[id]]] <- "neighbors"
#ggplot(columbus) + geom_sf(aes(fill = neighbors)) + theme_bw() +
  #scale_fill_manual(values = c("pink", "lavender", "white"))

Neighbors based on k-contiguity

K-contiguity neighbors extend the concept of contiguity by allowing areas to be connected if they share a common neighbor. This approach is useful for capturing more complex spatial relationships.

The nlab()function creates a neighborhood list based on k-contiguity, where each area is connected to its k nearest neighbors based on contiguity. The argument of this function are a list of neighbors list of class nb and the maximum lag considered.

nb <- poly2nb(columbus, queen = TRUE)
nblags <- spdep::nblag(neighbours = nb, maxlag = 3)

plot(st_geometry(columbus), border = "pink", col = "lavender")

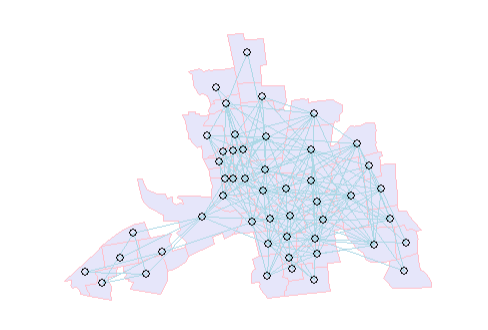

plot.nb(nblags[[1]], st_geometry(columbus), add = TRUE, col = "lightblue")


plot(st_geometry(columbus), border = "pink", col = "lavender")
plot.nb(nblags[[2]], st_geometry(columbus), add = TRUE, col = "lightblue")


# third order
plot(st_geometry(columbus), border = "pink", col = "lavender")

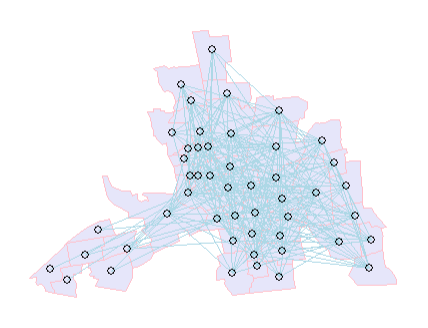

plot.nb(nblags[[3]], st_geometry(columbus), add = TRUE, col = "lightblue")

K-nearest neighbors

K-nearest neighbors (k-NN) define spatial relationships based on proximity rather than shared borders. In this approach, each area is connected to exactly \(k\) of its closest neighbors—no more, no less. This method is particularly useful when spatial contiguity (e.g., shared borders) fails to adequately reflect the underlying spatial interactions or dependencies.

# Neighbors based on 3 nearest neighbors
coo <- st_centroid(columbus)
nb <- knn2nb(knearneigh(coo, k = 3)) # k number nearest neighbors

# Assign color labels for visualization
columbus$neighbors_knn <- "other"
id <- 20 # example area id
columbus$neighbors_knn[id] <- "area"
columbus$neighbors_knn[nb[[id]]] <- "neighbors"

ggplot(columbus) +
  geom_sf(aes(fill = neighbors_knn), color = "lightgray") +
  scale_fill_manual(values = c("area" = "pink", "neighbors" = "lavender", "other" = "white")) +
  theme_bw() +
  labs(title = "Columbus Neighborhoods (3-Nearest Neighbors)",
       subtitle = "Spatial neighborhood structure (k-NN)",
       caption = "Source: spData package") +
  theme(legend.title = element_blank())

# Add neighbor lines

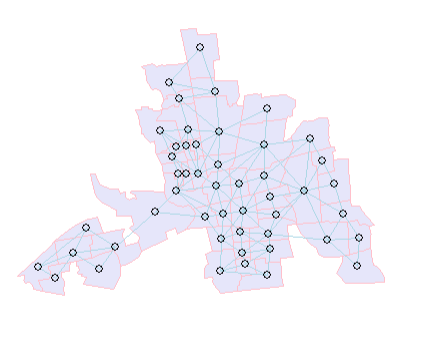

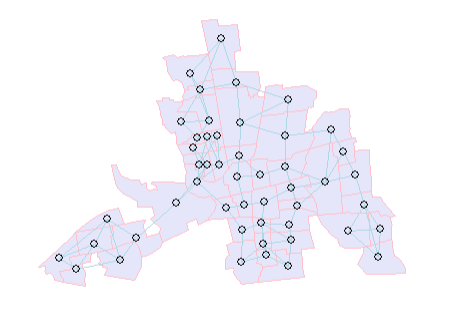

plot(st_geometry(columbus), border = "pink", col = "lavender")
plot.nb(nb, st_geometry(columbus), add = TRUE, col = "lightblue")

Neighborhood matrices

Just like in network analysis we can create a neighborhood matrix that represents the connections between areas. It is aso often referred to as a spatial weights matrix.

A spatial neighborhood matrix \(W\) is a \(nxn\) matrix. The \((i,j)\)th element of \(W\) \(w_{ij}\) represents the weight of the connection between area \(i\) and area \(j\). If there is no connection, \(w_{ij} = 0\). More weight is associated with areas closer together, while areas farther apart have lower weights.

\[ {\bf W} = \left(\begin{array}{ccccc} w_{1,1}&w_{1,2}&w_{1,3}&\cdots &w_{1,n}\\ w_{2,1}&w_{2,2}&w_{2,3}&\cdots &w_{2,n}\\ w_{3,1}&w_{3,2}&w_{3,3}&\cdots &w_{3,n}\\ \vdots&&&\ddots&\\ w_{n,1}&w_{n,2}&w_{n,3}&\cdots &w_{n,n} \end{array}\right) \]

If neighbours are based on contiguity, the matrix is binary, meaning that \(w_{ij} = 1\) if areas \(i\) and \(j\) are neighbors, and \(w_{ij} = 0\) otherwise. If neighbors are based on distance, the weights can be continuous values representing the distance between areas.

• If two regions are not neighbors, w_ij = 0.
• If they are neighbors, w_ij > 0 — often based on distance or shared boundary length.

Weights are usually row-standardized (so each row sums to 1). Row standardization is used to create proportional weights in cases where features have an unequal number of neighbors.

So the neighborhood matrix of the columbus network e.g. looks like this:

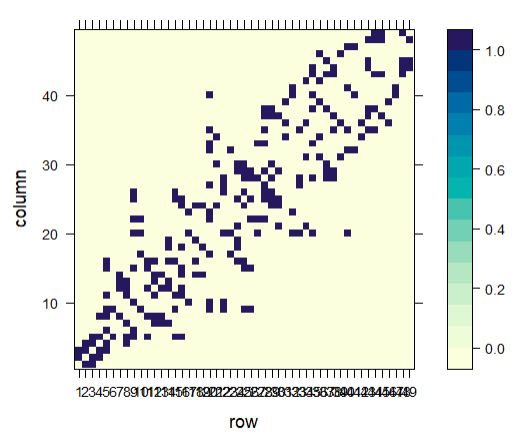

nb <- poly2nb(columbus, queen = TRUE)
nbw <- spdep::nb2listw(nb, style = "B", zero.policy = TRUE)
nbw$weights[1:3]

m1 <- listw2mat(nbw)
lattice::levelplot(t(m1),
scales = list(y = list(at = c(10, 20, 30, 40),
                       labels = c(10, 20, 30, 40))))

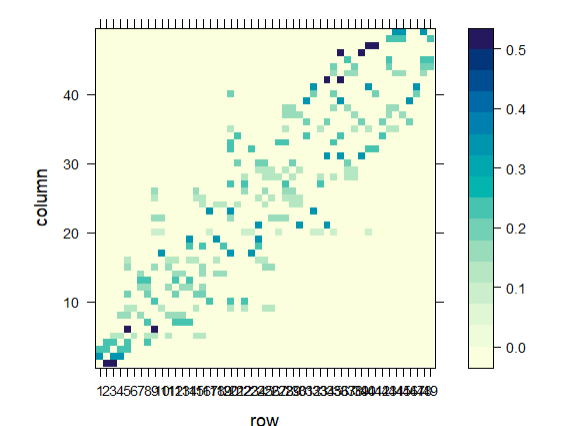

nbw <- spdep::nb2listw(nb, style = "W") # row standardized weights (1/n neighbors)
nbw$weights[1:3]

m1 <- listw2mat(nbw)
lattice::levelplot(t(m1),
scales = list(y = list(at = c(10, 20, 30, 40),
                       labels = c(10, 20, 30, 40))))

So as you can see, there is a variety of options for calculating the contiguity and weight matrices. This is at no means complete, we can also compute neighborhoods based on proximity, etc.

Autocorrelation

Spatial autocorrelation describes the extent to which values observed in nearby locations are correlated. In simpler terms:

Do similar things tend to cluster together in space, or are they randomly scattered?

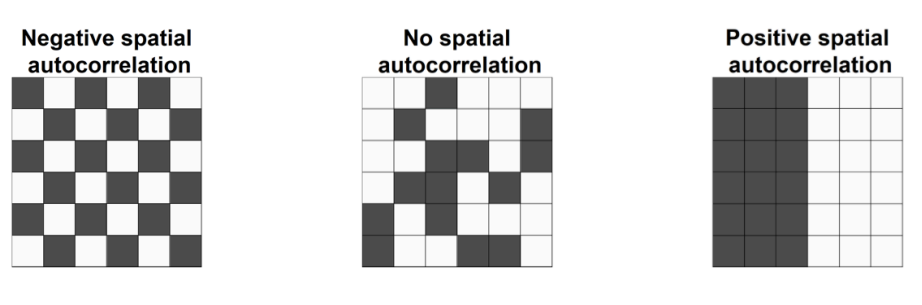

• Positive spatial autocorrelation: Similar values cluster in space.
• Negative spatial autocorrelation: Nearby values are different
• No spatial autocorrelation: Values are randomly distributed

We can assess spatial autocorrelation using indices that summarize the degree to which similar observations tend to occur near each other over the study area. One very common index is the Moran`s I (Moran 1950).

Global Morans \(I\)

To assess the presence of spatial autocorrelation across an entire study area, we use Moran’s I — a global statistic that quantifies whether areas with similar values tend to cluster together more than we’d expect by chance.

Moran’s I evaluates how each observation relates to its neighbors, and then averages those comparisons. Under the null hypothesis of no spatial autocorrelation, observations \(Y_i\) are assumed to be independent and identically distributed (i.i.d). In that case, Moran’s I is asymptotically normally distributed with known expectation and variance.

\[ I = \frac{N}{W} \cdot \frac{\sum_{i=1}^{N} \sum_{j=1}^{N} w_{ij}(x_i - \bar{x})(x_j - \bar{x})}{\sum_{i=1}^{N} (x_i - \bar{x})^2} \]

with

• \(N\) being the number of spatial units
• \(x_i\) being the variable of interest at location \(i\)
• \(\bar{x}\) is the mean of x
• \(w_{ij}\) is the spatial weight between units \(i\) and \(j\)
• \(W = \sum_{i=1}^{N} \sum_{j=1}^{N} w_{ij}\) is the sum of all spatial weights

A positive Moran’s I suggests that similar values are spatially clustered (positive autocorrelation), a negative value indicates dissimilar values are clustered (negative autocorrelation), and a value near zero implies no spatial autocorrelation (random spatial distribution).

columbus <- columbus |>
  st_make_valid()


district_nb <- poly2nb(columbus, queen = TRUE)

district_weights <- nb2listw(district_nb, style = "W", zero.policy = TRUE)

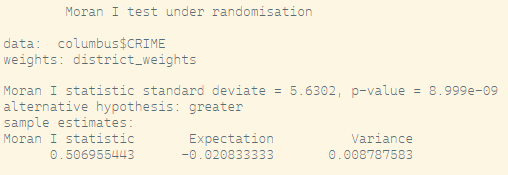

morans_i <- moran.test(columbus$CRIME,
                       district_weights,
                       zero.policy = TRUE)

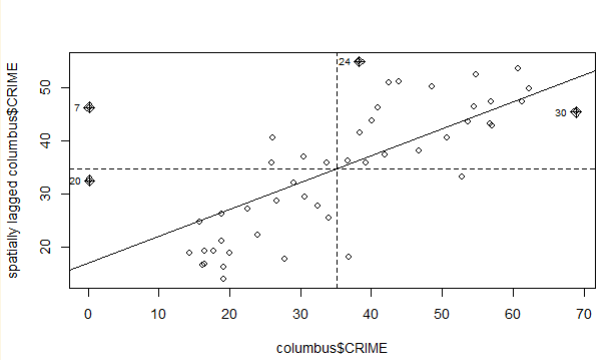

moran.plot(columbus$CRIME, district_weights)

We observe a positive linear relationship between the observations and their spatially lagged values. Using this plot, we can also identify data points that have a high influence on the linear relationship between the data and the lagged values.

Local Morans \(I\)

While the global Moran’s I summarize spatial autocorrelation across the whole study area, Local Moran’s I provides a location-specific estimate. This helps identify spatial clusters and outliers — places that deviate from the general trend.

Local Moran’s I for unit i is calculated as:

\[ I_i = \frac{(x_i - \bar{x})}{m_2} \sum_{j=1}^{N} w_{ij}(x_j - \bar{x}) \]

Where: - \(x_i\) = value at location i
- \(\bar{x}\) = mean of the variable
- \(x_j\) = value at neighboring location j
- \(w_{ij}\) = spatial weight between i and j
- \(m_2 = \frac{1}{N} \sum_{k=1}^{N}(x_k - \bar{x})^2\) = variance of \(x\)

This measure detects local clusters and outliers, allowing us to classify each observation’s spatial context.

Based on the value and its significance, results can be classified into LISA (Local Indicators of Spatial Association):

• High–High (Hotspot)
  High value surrounded by high values → positive spatial autocorrelation

• Low–Low (Coldspot)
  Low value surrounded by low values → positive spatial autocorrelation

• High–Low (Spatial Outlier)
  High value surrounded by low values → negative spatial autocorrelation

• Low–High (Spatial Outlier)
  Low value surrounded by high values → negative spatial autocorrelation

• Insignificant
  No clear spatial pattern

local_moran <- localmoran(columbus$CRIME, district_weights, zero.policy = TRUE)

columbus <- columbus |>
  mutate(
    local_I = local_moran[, "Ii"],
    p_value = local_moran[, "Pr(z != E(Ii))"],
    cluster = case_when(
      local_I > 0 & CRIME > mean(CRIME, na.rm = TRUE) & p_value < 0.05 ~ "High-High",
      local_I > 0 & CRIME < mean(CRIME, na.rm = TRUE) & p_value < 0.05 ~ "Low-Low",
      local_I < 0 & CRIME > mean(CRIME, na.rm = TRUE) & p_value < 0.05 ~ "High-Low",
      local_I < 0 & CRIME < mean(CRIME, na.rm = TRUE) & p_value < 0.05 ~ "Low-High",
      TRUE ~ "Insignificant"
    )
  )


ggplot(columbus) +
  geom_sf(aes(fill = local_I), color = NA) +
  scale_fill_viridis_c(option = "plasma",
                       name = "Local Moran's I") +
  labs(
    title = "Local Moran's I: Crime Rate",
    subtitle = "Spatial autocorrelation district",
    #caption = "Source: US Census / Your Dataset"
  ) +
  theme_minimal()

ggplot(columbus) +
  geom_sf(aes(fill = cluster), color = NA) +
  scale_fill_manual(values = c(
    "High-High" = "pink",
    "Low-Low" = "lavender",
    "High-Low" = "#fdae61",
    "Low-High" = "#abd9e9",
    "Insignificant" = "grey90"
  )) +
  labs(
    title = "Local Moran's I: Crime Rate",
    subtitle = "Cluster classification by spatial autocorrelation",
    fill = "Cluster Type"
  ) +
  theme_minimal()

Using the code below, you can download the dataset from the Github of Chris Gentry (Gentry n.d.)

us_counties <- counties(cb = TRUE, resolution = "20m", year = 2016, progress_bar = FALSE) |>
  st_transform(5070) |>
  mutate(FIPS = str_c(STATEFP, COUNTYFP))

child_pov <- read_csv("https://raw.githubusercontent.com/chrismgentry/Spatial-Regression/master/Data/childpov18_southfull.csv") |>
  mutate(FIPS = as.character(FIPS),
         FIPS = case_when(
           str_length(FIPS) == 4 ~ str_c("0", FIPS),
           TRUE ~ FIPS
  ))

us_counties_child_pov <- left_join(us_counties, child_pov, by = "FIPS") |>
  clean_names() |>
  drop_na(x2016_child_poverty)

1. Compute the Global Morans I for child poverty: x2016_child_poverty
2. Compute Local Morans
3. Map the results
4. Classify spatial patterns

What macro-factors might explain these spatial patterns?

• Urban vs. rural?
• Racial composition?
• Health insurance coverage?
• Teenage pregnancy rates?
• Employment types?
• Marriage rates?
• Income inequality?
• Something else?

Regression

equation <- x2016_child_poverty ~ urban + lnmanufacturing + lnretail + lnhealthss + lnconstruction +
                lnlesshs + lnunemployment + lnsinglemom + lnuninsured + lnteenbirth +
                lnincome_ratio + lnunmarried + lnblack + lnhispanic

ols_mod <- lm(equation,
  data = us_counties_child_pov)

ols_mod |> summary()

library(stargazer)

var_labels <- c(
  "urban" = "Urban (binary)",
  "lnmanufacturing" = "Manufacturing (%)",
  "lnretail" = "Retail (%)",
  "lnhealthss" = "Health/Social Services (%)",
  "lnconstruction" = "Construction (%)",
  "lnlesshs" = "Less than High School (%)",
  "lnunemployment" = "Unemployment Rate (%)",
  "lnsinglemom" = "Single Mothers (%)",
  "lnuninsured" = "Uninsured (%)",
  "lnteenbirth" = "Teen Births (%)",
  "lnincome_ratio" = "Income Ratio (80/20)",
  "lnunmarried" = "Unmarried Adults (%)",
  "lnblack" = "Black Population (%)",
  "lnhispanic" = "Hispanic Population (%)"
)

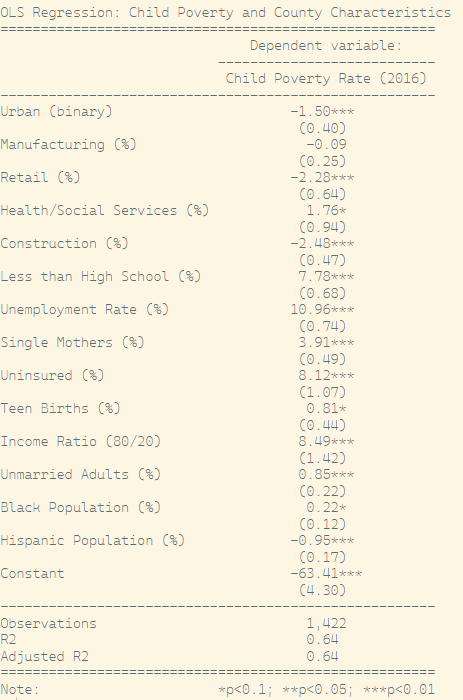

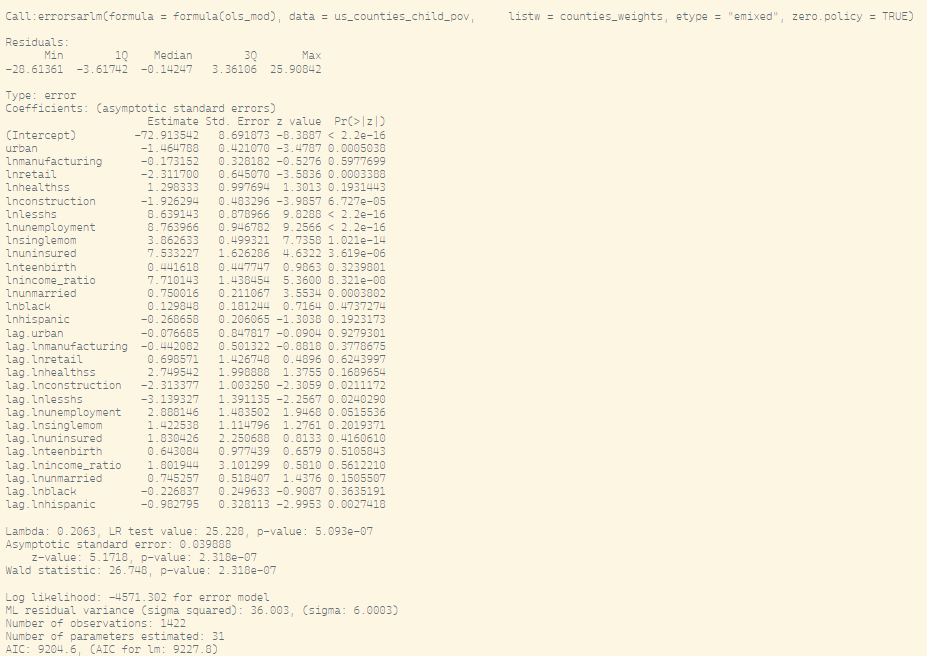

stargazer(
  ols_mod,
  type = "text",  # use "html" or "latex" for other formats
  title = "OLS Regression: Child Poverty and County Characteristics",
  covariate.labels = var_labels,
  dep.var.labels = "Child Poverty Rate (2016)",
  digits = 2,
  no.space = TRUE,
  omit.stat = c("f", "ser")  # optional: omit F-stat and standard error
)

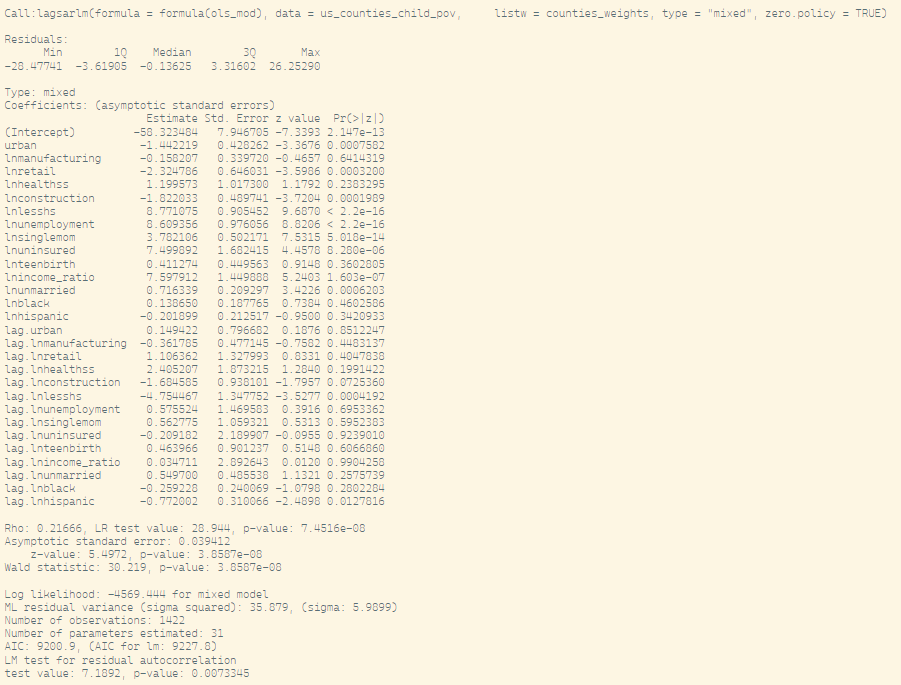

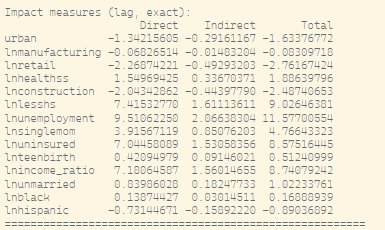

Do you see any problems here?

Spillovers in Spatial Data

Neighboring regions often influence each other, resulting in similarities or dependencies that standard regression models may fail to capture. Ignoring these spillover effects can lead to omitted variable bias.

Why do spillovers matter?

• On the right-hand side of a regression (independent variables), neighboring areas may share:
  • Local policies
  • Cultural or geographic characteristics
  • Economic shocks
  • Other unobserved factors
    Moreover, the challenges faced by one area’s neighbors often resemble its own problems.
• On the left-hand side (dependent variable), spillovers reflect interactions such as:
  • Similar child poverty trends across neighboring counties
  • Movement of families between adjacent counties
  • Shared labor markets and economic activities not fully captured by available data

---

Types of Spillovers

• Local spillovers: Effects that occur directly between neighbors.
  Example: Cigarette smuggling across adjacent state borders (LeSage, 2014).

• Global spillovers: Effects that propagate throughout the entire system, impacting regions beyond immediate neighbors.
  Example: Traffic congestion originating in one county affecting the broader region.

---

Implications for Spatial Analysis

• Spillovers lead to spatial autocorrelation, where observations are not independent.
• This can cause unequal predictive accuracy across locations.
• Residuals from regression models may show spatial autocorrelation:

\[ r_i = y_i - \hat{y}_i \]

where \(r_i\) is the residual for location \(i\), \(y_i\) the actual value, and \(\hat{y}_i\) the predicted value.

Understanding and modeling spillovers helps improve the validity and precision of spatial models by explicitly accounting for these dependencies.

Our OLS-Regression model works quite well, however as we saw in the map, there seem to be hotspots of child poverty. We can test if this is actually true, using Morans I.

We see high autocorrelation, when it comes to child poverty in the US. For a basic OLS-model, this will result in unequal accuracy of our predictions.

Autocorrelated residuals are defined as

\[ r_i = y_i -\hat{y}_i \]

We can again use the Morans I test to adjust for autocorrelation in the residuals

us_counties_child_pov_res <- us_counties_child_pov |>
  mutate(residuals = residuals(ols_mod))

breaks_res <- classIntervals(us_counties_child_pov_res$residuals,
                        n = 7,
                        style = "jenks")


morans_i_child_pov_res <- moran.test(us_counties_child_pov_res$residuals,
                                 counties_weights,
                                 zero.policy = TRUE)

morans_i_child_pov_res

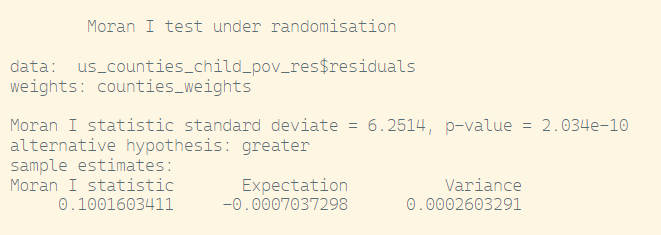

As we can see we have autocorrelated residuals

local_morans_resid <- localmoran(us_counties_child_pov_res$residuals,
                                 counties_weights,
                                 zero.policy = TRUE)


us_counties_child_pov_res <- us_counties_child_pov_res |>
  mutate(
    local_i_resid = local_morans_resid[, "Ii"],
    local_i_p_resid = local_morans_resid[, "Pr(z != E(Ii))"]
  )

ggplot(us_counties_child_pov_res) +
  geom_sf(aes(fill = local_i_resid), color = "lightgray", size = 0.1) +
  scale_fill_gradient2(
    low = "blue", mid = "white", high = "red",
    midpoint = 0,
    name = "Local Moran's I\nof Residuals"
  ) +
  theme_minimal() +
  labs(
    title = "Local Moran's I of Residuals",
    subtitle = "Spatial Clustering of Model Residuals"
  )

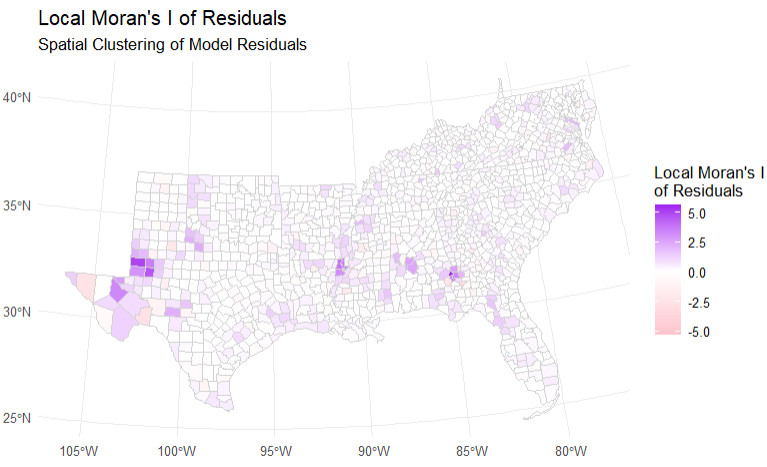

As it seems, there are some spots where the OLS predictions are worse than others.

When we model Autocorrelation into regressions, there are basically two ways:

− Lags: something we observe in neighboring entities (here: counties) has an effect on our focal entity

− Error: something we do not observe yet that alters our results is the same for the focal entity and the neighboring ones

=> to get unbiased estimates, we need to include this in our models

Spatially lagged \(X\) Variables (SLX)

Main idea: How do characteristics of neighboring counties affect the focal county?

Solution: Include neighboring counties’ average values for each independent variable using a spatial weights matrix.

In a non-spatial OLS model, we estimate:

\[ y = X \beta + \varepsilon \]

This equation examines how the focal county’s characteristics (\(X\)) influence the outcome (\(y\)).

With a Spatially Lagged X (SLX) model, we add spatial lags of the independent variables:

\[ y = X \beta + W X \theta + \varepsilon \]

Where:

• \(W\) is a spatial weights matrix,
• \(WX\) represents the average values of independent variables in neighboring counties,
• \(\theta\) captures the influence of neighbors’ characteristics.

This model is unidirectional: neighboring counties can affect the focal county, but not vice versa. There are no feedback effects through the dependent variable, making this a local model.

us_counties_child_pov_xlags <- us_counties_child_pov |>
  mutate(
    W_lnmanufacturing = lag.listw(counties_weights, lnmanufacturing),
    W_lnretail = lag.listw(counties_weights, lnretail),
    W_lnhealthss = lag.listw(counties_weights, lnhealthss),
    W_lnconstruction = lag.listw(counties_weights, lnconstruction),
    W_lnlesshs = lag.listw(counties_weights, lnlesshs),
    W_lnunemployment = lag.listw(counties_weights, lnunemployment),
    W_lnsinglemom = lag.listw(counties_weights, lnsinglemom),
    W_lnuninsured = lag.listw(counties_weights, lnuninsured),
    W_lnteenbirth = lag.listw(counties_weights, lnteenbirth),
    W_lnincome_ratio = lag.listw(counties_weights, lnincome_ratio),
    W_lnunmarried = lag.listw(counties_weights, lnunmarried),
    W_lnblack = lag.listw(counties_weights, lnblack),
    W_lnhispanic = lag.listw(counties_weights, lnhispanic)
  )

slx_formula <- update(formula(ols_mod),
                     . ~ . + W_lnmanufacturing + W_lnretail + W_lnhealthss +
                       W_lnconstruction + W_lnlesshs + W_lnunemployment +
                       W_lnsinglemom + W_lnuninsured + W_lnteenbirth +
                       W_lnincome_ratio + W_lnunmarried + W_lnblack + W_lnhispanic)

slx_mod <- lm(slx_formula, data = us_counties_child_pov_xlags)

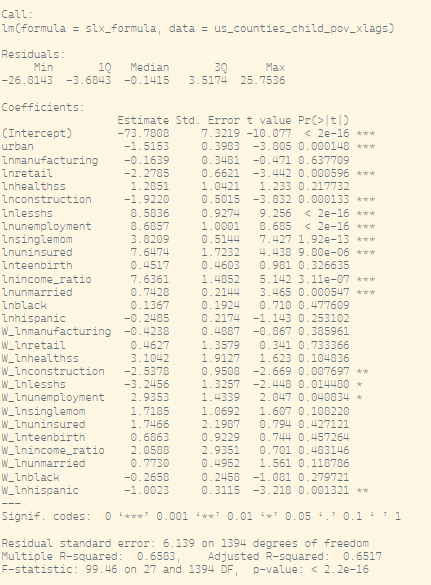

slx_mod |> summary()

How can we interpret the w_lnconstruction and w_lnlesshs ? How can we explain this?

Spatial Autoregressive (SAR) Model

Main idea: How do the outcome values of neighboring counties influence the outcome in a focal county?

Solution: Include a spatial lag of the dependent variable — i.e., use the average of neighboring counties’ outcome values as a predictor.

This leads to a Spatial Autoregressive Model (SAR), which adds spatial dependence directly into the response variable:

\[ y = X \beta + \rho W y + \varepsilon \]

Where: - \(y\): Dependent variable (e.g., child poverty rate) - \(X\): Matrix of independent variables - \(\beta\): Coefficients for \(X\) - \(W y\): Spatial lag of the dependent variable — a weighted average of neighboring counties’ outcomes - \(\rho\): Spatial autoregressive coefficient (captures the influence of neighbors’ outcomes) - \(\varepsilon\): Error term

The SAR-Model covers the following key characteristics:

• Global Spillover: Changes in one county’s outcome can affect its neighbors, who in turn affect their neighbors. The effect ripples through the network.
• Spatial Feedback: Unlike the SLX model, where effects are unidirectional, the SAR model allows mutual influence among spatial units.
• Theoretical Justification: Use SAR only if there’s a strong rationale for believing that the outcome in one area is causally influenced by outcomes in nearby areas.

sar_mod <- lagsarlm(formula(ols_mod),
                    data = us_counties_child_pov,
                    listw = counties_weights,
                    zero.policy = TRUE)

sar_mod |> summary()

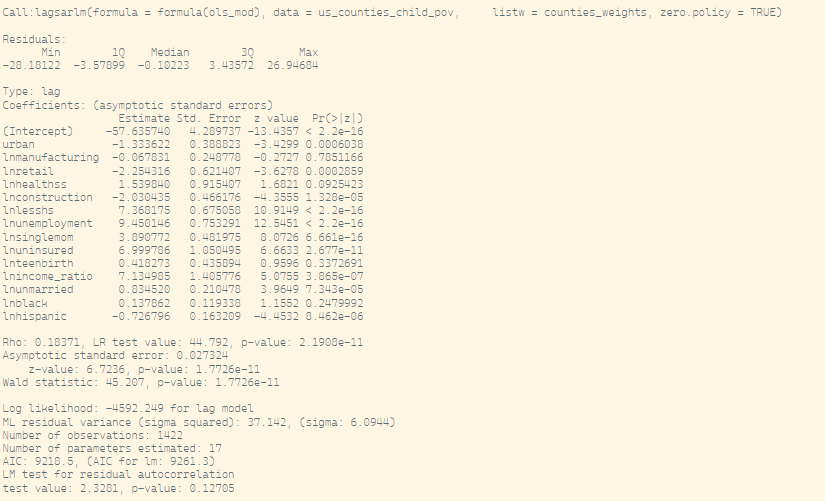

The SAR model reveals significant spatial dependence in the data, with a positive spatial autoregressive coefficient \(( \rho = 0.189\), p < 0.001). This indicates that counties tend to resemble their neighbors in terms of the outcome variable (e.g., child poverty rate). In other words, there are meaningful spillover effects: changes in one county’s outcome can influence those of surrounding counties.

In a SAR model, a change in one county affects:

• The focal county itself (direct effect)
• Its neighbors, who then affect their neighbors, and so on (indirect effects)

This recursive influence means that a small initial change can propagate across the entire spatial system.

The coefficient ( = 0.189 ) acts as a spatial multiplier. While it does not translate directly to a “percentage increase”, we can think of it conceptually: changes in neighboring counties’ outcomes generate a feedback loop that amplifies the total effect beyond just the local area.

Several predictors—such as education, unemployment, and insurance coverage—remain significant, consistent with previous models. However, unlike OLS, these coefficients in a SAR model cannot be interpreted directly as marginal effects due to the spatial multiplier effect.

A test for residual spatial autocorrelation gives a p-value of 0.13, indicating that *the SAR model has largely accounted for spatial dependence in the residuals. This suggests the model is well specified in terms of spatial structure.

To fully interpret the effects of predictors in a SAR model, we must disentangle direct and indirect impacts using the impacts() function:

#| code-fold: false

sar_impacts <- impacts(sar_mod, listw = counties_weights, R = 1000)
summary(sar_impacts)

In a SAR model, each independent variable has three associated effects:

1. Direct effect: The impact of a one-unit change in the variable within the focal county on its own outcome.
2. Indirect effect (spillover): The impact of that same change on neighboring counties’ outcomes, which then may feedback to the focal county.
3. Total effect: The sum of direct and indirect effects — representing the full spatial impact of the variable across the system.

A general interpretation rule based on this structure:

For each 1-unit increase in an explanatory variable, the direct effect represents the expected change in the outcome in the same county. The indirect effect captures the spatial spillover — how changes in one county influence surrounding counties, and recursively, how those effects propagate back. The total effect is the combined influence across the spatial network.

Spatial Error Model (SEM)

The Spatial Error Model (SEM) addresses the possibility that unobserved variables—factors not included in our model—are spatially structured. In other words, residuals in one county may be correlated with those in neighboring counties because of shared, but unmeasured, influences.

This model assumes that the error term itself is spatially autocorrelated, and it captures this dependence structure directly.

\[ y = X\beta +u \]

with \(u = \lambda Wu + \varepsilon\), the function of our unexplained error (\(\varepsilon\)) and our neighborsresidual values

Use SEM when:

• You suspect omitted variables that are spatially clustered
• Residuals from an OLS model show spatial autocorrelation
• You want directly interpretable coefficients, unlike in SAR

sem_mod <- errorsarlm(formula(ols_mod),
                      data = us_counties_child_pov,
                      listw = counties_weights,
                      zero.policy = TRUE)

sem_mod |> summary()

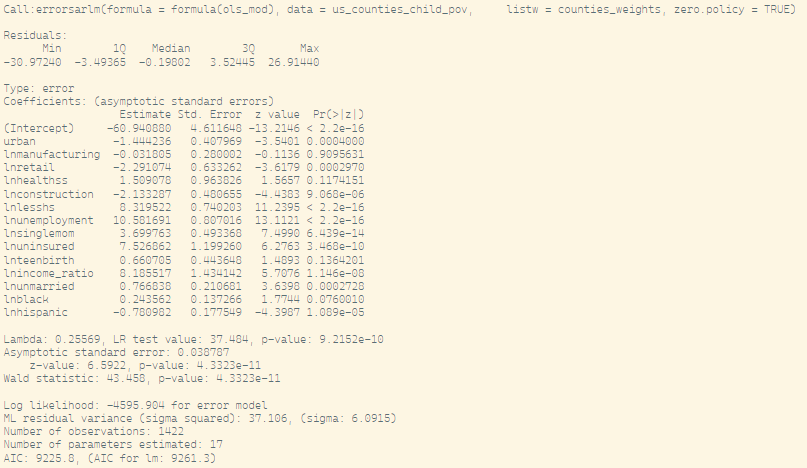

The spatial error parameter \(\lambda=0.26\) with $p> 0.001 indicates a strong spatial autocorrelation in the residuals. This suggests that unmeasured, spatially clustered factors are influencing child poverty rates.

Unlike SAR, where spillovers create indirect effects, SEM models spatial dependence in the error structure, not in the outcome. This means that coefficients in SEM can be interpreted directly as marginal effects—just like in OLS—without needing to decompose effects into direct/indirect components.

Nested Models

In addition to the basic spatial models (SLX, SAR, SEM), we can explore nested spatial models—hybrid models that include combinations of spatial lags and/or error terms. These models allow for local and global dynamics and can be compared using likelihood ratio tests or AIC to evaluate model fit.

Understanding whether your spatial processes are local (unidirectional influence) or global (system-wide feedback) is key to choosing the appropriate model.

Spatial Durbin Model

The Spatial Durbin Model (SDM) accounts for spatial dependence in both:

• The dependent variable \(y\) (e.g., child poverty)
• The independent variables \(X\) (e.g., unemployment, education)

This model assumes that:

• A neighboring county’s outcome affects the focal county
• The socioeconomic characteristics of neighbors also influence the focal county

The SDM is considered a global model, as spatial effects can ripple throughout the entire spatial system—not just adjacent counties.

\[ y = \rho Wy + X\beta + WX\theta + \varepsilon \]

Where:

• \(\rho\): Spatial autoregressive parameter (lagged y)
• \(WX\): Spatial lag of the independent variables
• \(\theta\): Coefficients for the lagged \(X\)s

The SDM nests several other models:

• If \(\rho = 0\): it becomes SLX
• If \(\theta = 0\): it becomes SAR
• If both \(\rho = 0\) and \(\theta = 0\): it’s OLS

sdm_mod <- lagsarlm(formula(ols_mod),
                    data = us_counties_child_pov,
                    listw = counties_weights,
                    type = "mixed",
                    zero.policy = TRUE)

sdm_mod |> summary()

The SDM results reveal significant spatial dependence (\(\rho = 0.21\)). The model shows the best fit among our specifications with the so-far lowest AIC (9200.9), though significant residual autocorrelation suggests some spatial patterns remain uncaptured.

Again, like in the SAR model, we need to calculate impacts to properly disentangle the effects.

sdm_impacts <- impacts(sdm_mod, listw = counties_weights)
sdm_impacts

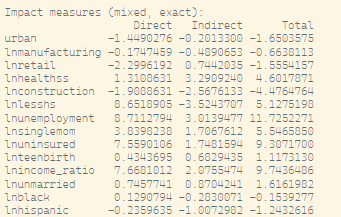

Here, unemployment shows the strongest total effect (11.72), combining a substantial direct effect (8.71) with positive spillovers (3.01), indicating that high unemployment affects poverty both within and across county lines.

Education (less than high school) presents an interesting case with a strong positive direct effect (8.65) but negative indirect effect (-3.52), yielding a moderate total effect (5.12). This might be in line with what we saw in an earlier model, where higher education in surrounding counties had a positive effect on child poverty, suggesting that if a county is surrounded by better educated counties, the effect of more uneducated individuals in a county is more pronounced.

The SDM captures both local characteristics and regional spillovers, making it a powerful tool for understanding complex spatial systems. The spatial multiplier effect in this model reflects a system-wide interdependence where changes in one county can propagate through many others.

This model is particularly useful when theory or diagnostics suggest both:

• Feedback effects via the outcome variable
• Contextual effects from neighbors’ characteristics

Spatial Durbin Error Model

The Spatial Durbin Error Model (SDEM) accounts for two key spatial processes:

1. Local spillovers from neighboring counties’ characteristics (lagged X variables)
2. Spatial autocorrelation in unmeasured factors (via a spatial error term)

Unlike the Spatial Durbin Model (SDM), SDEM does not include a spatial lag of the dependent variable. This means the model assumes spillovers are local—limited to direct neighbors—without system-wide feedback effects.

This structure makes the SDEM appropriate when:

• Neighboring counties’ socioeconomic conditions affect the focal county
• Unmeasured, spatially clustered factors (e.g., policy environments, cultural context) may bias residuals
• But global feedback via the dependent variable is not expected

\[ y = X\beta + WX\theta + u, \quad \text{with }u = \lambda Wu + \varepsilon \]

This model can be seen as a hybrid of SLX and SEM and nests simpler models:

• If \(WX = 0\): becomes SEM
• If \(\lambda = 0\): becomes SLX
• If both = 0: becomes OLS

sdem_mod <- errorsarlm(formula(ols_mod),
                       data = us_counties_child_pov,
                       listw = counties_weights,
                       etype = "emixed",
                       zero.policy = TRUE)
summary(sdem_mod)

Since the SDEM does not include a lagged variable the coefficients can be interpreted directly as marginal effects. The \(\lambda=0.2063\) with \(p<0.001\) suggests meaningful spatial autocorrelation in unobserved factors influencing child poverty.

The effects are consistent with the other models - unemployment, inequality, and limited education are strongly associated with higher child poverty, retail and construction employment tend to reduce poverty.

The SDEM is a flexible tool for capturing localized spatial spillovers and spatially structured omitted variables—without assuming global feedback effects. It bridges the gap between SEM and SLX models and can be especially useful when:

• You’re confident that spillover effects don’t ripple system-wide

• You want interpretable coefficients

• You still need to account for spatial clustering in residuals

Comparison

A LISA map (Local Indicators of Spatial Association) shows where significant local spatial clustering exists. It identifies “hot spots” (areas where high or low values are surrounded by similar values) and spatial outliers (areas that differ from their neighbors).

For a diagnostic tool of our models, we can plot the LISA map of the residuals. The ideal situation is if your residuals are randomly distributed across space (no clustering), it suggests your model has adequately accounted for spatial dependence.

A LISA map of residuals would mostly show “Not significant” areas.

analyze_residuals <- function(model, data, weights, model_name) {
  # Add residuals to data
  data <- data |>
    mutate(residuals = residuals(model))

  # Calculate Moran's I
  morans_i <- moran.test(data$residuals, weights, zero.policy = TRUE)

  # Calculate LISA
  local_morans <- localmoran(data$residuals, weights, zero.policy = TRUE)

  # Add LISA to data
  data <- data |>
    mutate(
      local_i = local_morans[, "Ii"],
      local_i_p = local_morans[, "Pr(z != E(Ii))"]
    )

  # Create residuals map
  breaks_res <- classIntervals(data$residuals, n = 7, style = "jenks")

  res_map <- data |>
    ggplot() +
    geom_sf(aes(fill = residuals),
            color = "gray90",
            size = 0.1) +
    scale_fill_gradientn(
      colors = brewer.pal(7, "BuPu"),
      breaks = round(breaks_res$brks, 1),
      name = "Residuals",
      guide = guide_colorbar(
        direction = "horizontal",
        title.position = "top",
        label.position = "bottom",
        barwidth = 15,
        barheight = 0.5
      )
    ) +
    theme_minimal() +
    theme(
      plot.title = element_text(hjust = 0.5, size = 16, face = "bold"),
      legend.position = "bottom"
    ) +
    labs(
      title = paste(model_name, "Model Residuals"),
      subtitle = "Purple indicates over-prediction, Blue indicates under-prediction"
    )

  # Create LISA map
  lisa_map <- data |>
    ggplot() +
    geom_sf(aes(fill = local_i), color = "gray70", size = 0.1) +
    scale_fill_gradient2(
      low = "blue", mid = "white", high = "red",
      midpoint = 0,
      name = "Local Moran's I"
    ) +
    theme_minimal() +
    theme(plot.title = element_text(hjust = 0.5, size = 16, face = "bold")) +
    labs(
      title = paste("Local Moran's I of", model_name, "Residuals"),
      subtitle = "Spatial Clustering of Model Residuals"
    )

  return(list(
    morans_i = morans_i,
    res_map = res_map,
    lisa_map = lisa_map
  ))
}


ols_analysis <- analyze_residuals(ols_mod, us_counties_child_pov,
                                counties_weights, "OLS")
ols_analysis[[3]]



slx_analysis <- analyze_residuals(slx_mod, us_counties_child_pov,
                                counties_weights, "SLX")
slx_analysis[[3]]



sar_analysis <- analyze_residuals(sar_mod, us_counties_child_pov,
                                counties_weights, "SAR")
sar_analysis[[3]]


sem_analysis <- analyze_residuals(sem_mod, us_counties_child_pov,
                                counties_weights, "SEM")
sem_analysis[[3]]


sdm_analysis <- analyze_residuals(sdm_mod, us_counties_child_pov,
                                counties_weights, "SDM")
sdm_analysis[[3]]


sdem_analysis <- analyze_residuals(sdem_mod, us_counties_child_pov,
                                counties_weights, "SDEM")
sdem_analysis[[3]]


# Save each plot
ggsave("Graphics/OLS_residuals.png", plot = ols_analysis[[3]], width = 6, height = 5)
ggsave("Graphics/SLX_residuals.png", plot = slx_analysis[[3]], width = 6, height = 5)
ggsave("Graphics/SAR_residuals.png", plot = sar_analysis[[3]], width = 6, height = 5)
ggsave("Graphics/SEM_residuals.png", plot = sem_analysis[[3]], width = 6, height = 5)
ggsave("Graphics/SDM_residuals.png", plot = sdm_analysis[[3]], width = 6, height = 5)
ggsave("Graphics/SDEM_residuals.png", plot = sdem_analysis[[3]], width = 6, height = 5)

models_comparison <- tibble(
  Model = c("OLS", "SLX", "SAR", "SEM", "SDM", "SDEM"),
  AIC = c(AIC(ols_mod), AIC(slx_mod), AIC(sar_mod),
          AIC(sem_mod), AIC(sdm_mod), AIC(sdem_mod))
) |>
  arrange(AIC)

While statistical fit matters, the choice of spatial model should be theoretically informed—guided by your understanding of whether spatial relationships are local, global, or driven by observed versus unobserved factors.

References

Gentry, Chris. 2024. “Chrismgentry/Spatial-Regression.”

———. n.d. “Spatial Regression Analysis Advanced Data Analytics.” https://chrismgentry.github.io/Spatial-Regression/. Accessed June 23, 2025.

Lennert, Felix. 2024. “06-002-107-3: Forschungsseminar – Experimentelle Soziologie Und Computational Social Science.”

Moraga, Paula. 2024. Spatial Statistics for Data Science: Theory and Practice with R. First edition. Chapman & Hall/CRC Data Science Series. Boca Raton: CRC Press, Taylor & Francis Group.

Moran, P. A. P. 1950. “Notes on Continuous Stochastic Phenomena.” Biometrika 37 (1/2): 17. https://doi.org/10.2307/2332142.

Copyright

© 2026 Leonie Steinbrinker
